90W POE Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T PD Plug

90W POE Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T PD Plug
90W POE Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T PD Plug

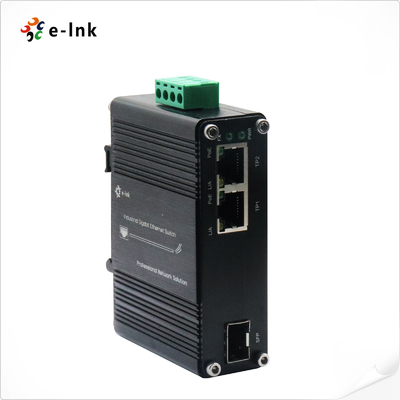

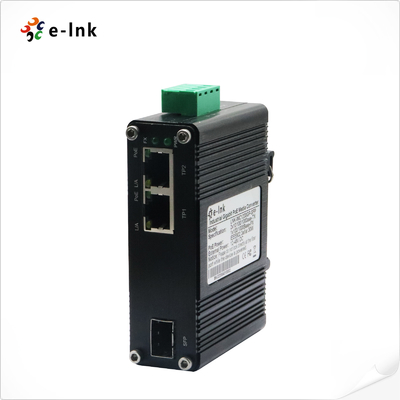

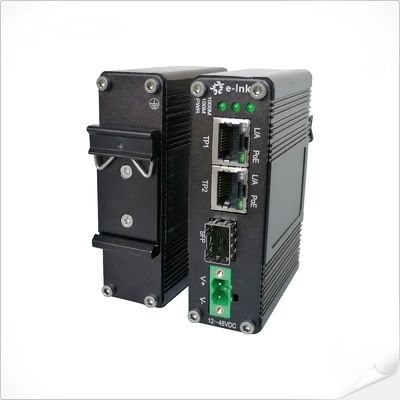

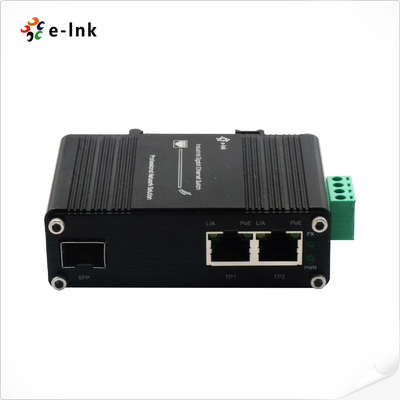

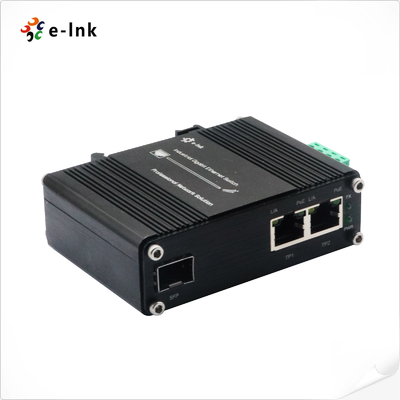

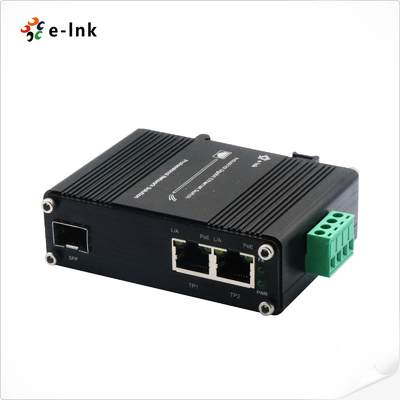

Large Image :  90W POE Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T PD Plug

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE/FCC/Rohs
Model Number: LNK-IMC1200GP90-SFP
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1 piece in 1 carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Input Power:: 48~57VDC, 2-pin Terminal Block Output Power: 48VDC
Power Consumption:: 185W Max. Dimensions (WxDxH):: 95 X 70 X 30 Mm
Mounting Options: DIN-Rail / Wall-mount Weight:: 0.25Kg
High Light:

90W POE Media Converter


1000X SFP POE Media Converter


PD Plug Gigabit Media Converter

Mini Industrial 90W PoE+ Media Converter 1-Port 100/1000X SFP to 2-Port 10/100/1000T

Model: LNK-IMC1200GP90-SFP




LNK-IMC1200GP90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C.


LNK-IMC1200GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.





    2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

    1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

    Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

    Supports Link Fault Pass Through

    Supports Full/Half-duplex, Auto-negotiation

    9K Bytes Jumbo Frame

    48~57VDC Terminal Block Power Input

    Supports DIN-Rail & Wall-mount installation


    Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature



Technical Indexes




IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:


Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses



2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Power Consumption:

185W Max.

LED Indicators:


Power Status


PD Plug Status





Dimensions (WxDxH):

95 x 70 x 30 mm




Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount


Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing


> 200,000 hrs




Order Information




Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
