Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera

China E-link China Technology Co., Ltd. certification
China E-link China Technology Co., Ltd. certification
The engineer solved our problem very quick, and the service is very good. Very professional factory.

—— Robert Lichtenstein-Canada

I had no concern, was buying and testing, so equipment is ok. So equipment and logistic is ok, we keep ordering and making business.

—— Anek – Thailand

I'm very satisfied with the media converter received, the OEM order quality is good.

—— Faize Akçaba-Turkey

E-link Sales are very professional, they give me not only product, but also solution. All E-link Fiber Media Converters and PoE Switches works well.

—— Patrícia Maia-Brazil

I'm Online Chat Now

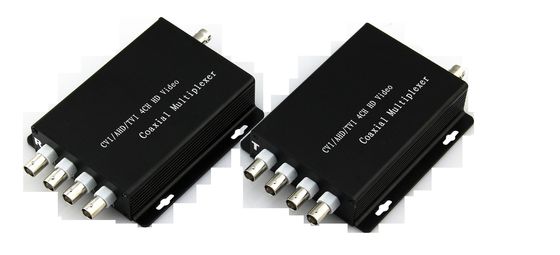

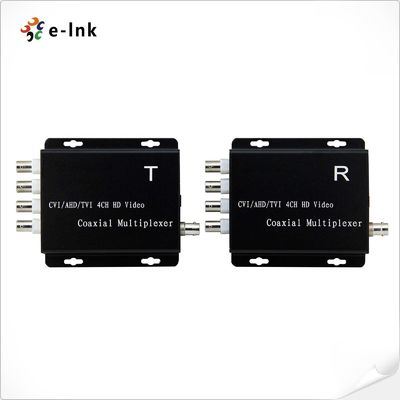

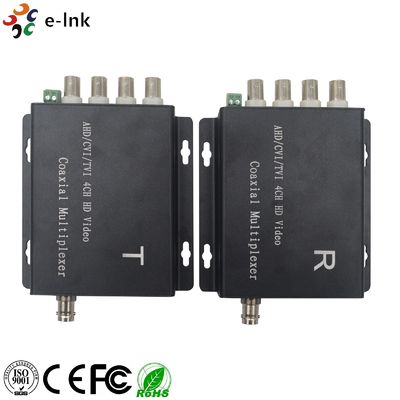

Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera

Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera
Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera

Large Image :  Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-MVHD-104ACT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: Analog Video Multiplexer standard export package
Delivery Time: 5~7 working days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 2000 pairs/per month
Detailed Product Description
Support: AHD CVI TVI (720P.960P.1080P) Camera: 2MP Camera By One Coaxial Cable
Signal Mode: 4 CH Transmission Distance: Up To 100M
Connector: BNC
High Light:

CVI TVI HD Coaxial Multiplexer

,

2MP Camera HD Coaxial Multiplexer

,

BNC Connector Digital Video Multiplexer

Analog Video Multiplexer 4 Ch CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera

4 channels video multiplexer advantages

4 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable
Designed according to projects with minimum installation volume requirement
One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)
Maintaining high quality CVI/AHD/TVI video & anti-interference immunity
Easy installation with BNC harness

Specifications ( Please use SYV75-3 Single core coaxial cable )

Model Signal Mode Camera Mode SYV75-3
LNK-MVHD 104ACT 4 CH AHD/CVI/TVI: 720P/960P/1080P ≦100M

Overview

E-link LNK-MVHD-104 series Coaxial HD video standard on the market at present is divided into three kinds of HD CVI Dahua company standards, Xiongmai Technology AHD and Hikvision TVI standards. Its resolution is divided into 1 million pixels (720P), 1.3 million pixels (960P), and 2 million pixels (1080P), and other three kinds of the resolution of the video image.

This product uses special compression modulation technology, on the front end (transmitter) will 4-Ch CVI/AHD/TVI HD video camera is compressed, made into digital signal in coaxial cable transmission, the back-end (receiver) through demodulation, reductive into 4 HD signals after decompression, for HD DVR (TVI/CVI/AHD) or matrix is used. This series of products can be divided into the 100 meters, such as the transmission distance and different models.

Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera 0

Analog Video Multiplexer 4 Channels CVI AHD TVI HD Coaxial Multiplexer For 2MP Camera 1

Ordering Information

Item Description
LNK-MVHD-104ACT 4-Ch AHD/CVI/TVI video converter transmitter and receiver for 2MP camera by one coaxial cable Transmission distance≦100M, support: AHD/CVI/TVI (720P.960P.1080P)
LNK-MVHD-4V1D 4-Ch AHD/CVI/TVI video converter transmitter and receiver for 2MP camera by one coaxial cable Transmission distance≦100M, Support: AHD/CVI/TVI(720P.960P 1080P) + RS485 Data
