Bidi Stereo Audio 1Ch GPIO Over Fiber Extender USB KVM RS232

Name: Bidi Stereo Audio 1Ch GPIO Over Fiber Extender USB KVM RS232
Brand: E-link
SKU: LNK-KVM-HDMI-1D1BA1GO
Price: 129 USD
Availability: InStock
Rating: 5 (141 reviews)

Large Image : Bidi Stereo Audio 1Ch GPIO Over Fiber Extender USB KVM RS232

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE
Model Number:	LNK-KVM-HDMI-1D1BA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1pairs
Price:	USD129/Paris
Packaging Details:	Standard Carton Packaging
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	1000000Pairs/Month

Contact Now

Detailed Product Description

Product Name:	1080P HDMI Over Fiber Extender	Standards:	HDMI V1.3
Connector:	HDMI	Fiber Type:	Single-mode
GPIO:	Industrial Terminal	K/M:	MINI-USB Or USB-A
RS232:	Industrial Terminal	Transmission Distance:	Standard 20km
Power Supply:	DC 12V/1A	Resolution:	Max: 1920X1080p@60Hz
High Light:	Bidi Stereo Audio Over Fiber Extender , 1Ch GPIO Over Fiber Extender , RS232 Hdmi Fiber Optic Extender

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

Product Description

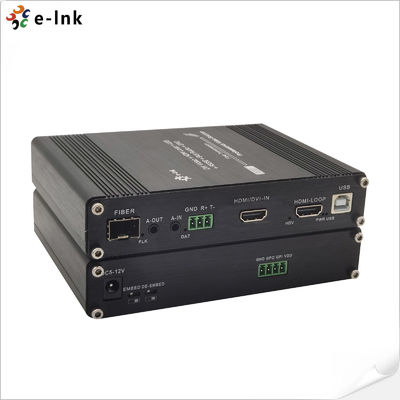

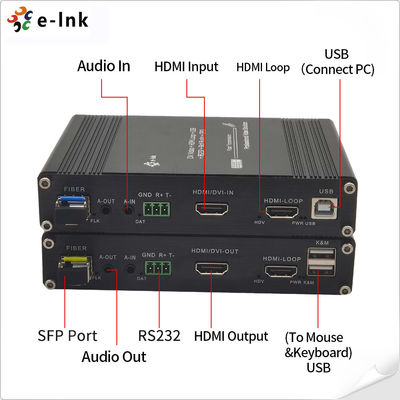

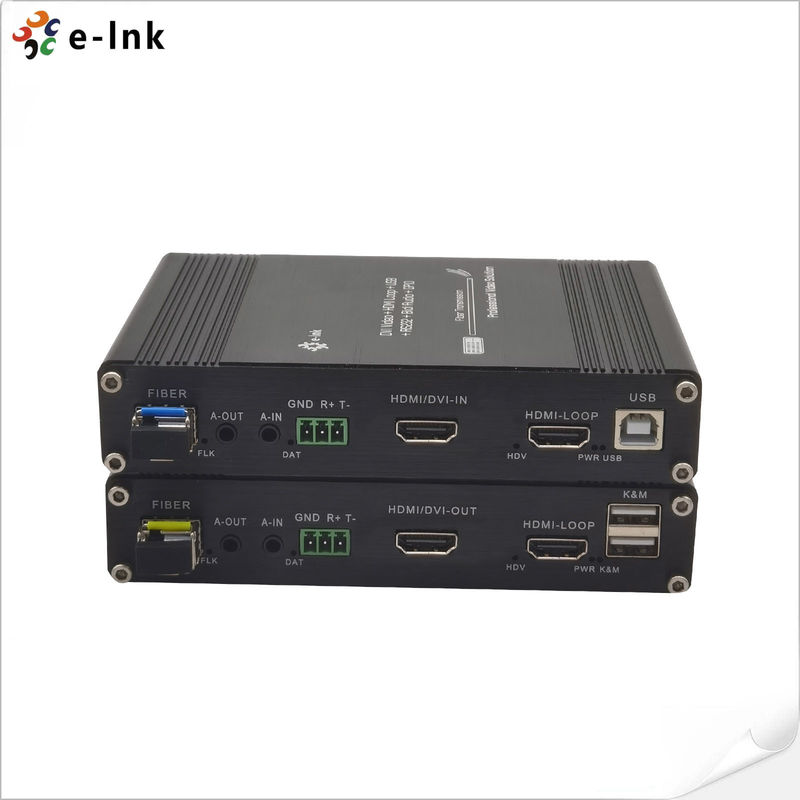

The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Video	Standards	HDMI V1.3
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201080@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	HDMI
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A

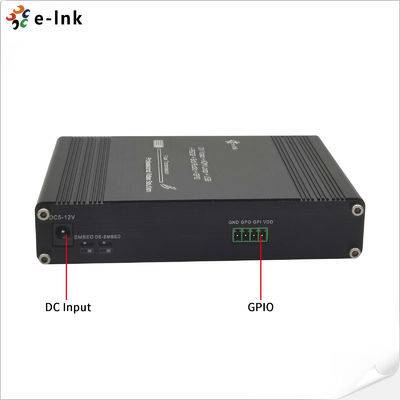

GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 20km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	16811528mm
	The warranty	1-year warranty
