E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
Input/Output: | USB2.0 Type-A Female | Size (L× W ×H): | 104mm X104mm X28mm |
---|---|---|---|
Case: | Aluminum | Color: | Black |
N.W.: | 0.75Kg | Voltage: | 5V DC |
Max. Distance: | 6KM | Wave Length: | 1310nm/1550nm |
Connector: | Simplex LC | ||
High Light: | 6KM UTP Video Extender,E-Link UTP Video Extender,USB2.0 Simplex LC UTP Extender |
Overview

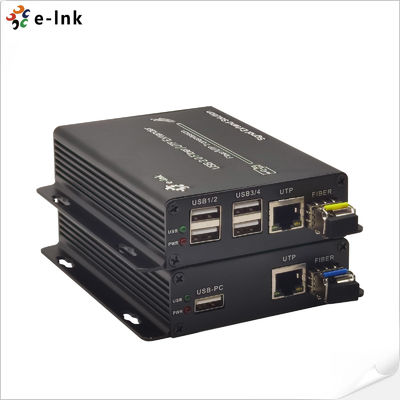

E-link 4 Port USB 2.0 Fiber/UTP Optic Extender support both Fiber and UTP cable transmission.
This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The use of optical fiber cable can extend the distance up to 6KM.
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Features
► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;
► Support USB-HUB expansion, support all kinds of USB devices;
► No Drivers Required, compatible with all operating systems;
► Support hot-swappable, plug and play;
► Cat5 network cable 100 meter, Cat6 network cable 170 meters;
► Support optical fiber extension of 6km, of which USB non-real-time transmission can reach more than 10km;
► Support 2 groups of I/O synchronous extension control, which can realize remote switch and restart
Technical Indexes
Optical | Connector | Simplex LC |
Wave length | 1310nm/1550nm | |
Max. Distance | 6KM | |
USB2.0 | Input/Output | USB2.0 Type-A Female |
Physical | Size (L× W ×H) | 104mm x104mm x28mm |
Case | Aluminum | |
Color | Black | |
N.W. | 0.75Kg | |
Power | Voltage | 5V DC |
Power consumption | <5W | |
Environment | Working temperature | -20℃~70℃ |
Storage temperature | -40~85℃ | |
Humidity | 0-95% (non-condensing) |
Application
Ordering Information
Model | Description |
LNK-U4TF1-2.0 | 4-port USB 2.0 Fiber/UTP extender, 1 USB for Local Unit, 4 USB for Remote Unit, up to 6KM via Single Mode fiber cable, up to 170m via Cat6 cable |
Pictures
