KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio

KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio
KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio

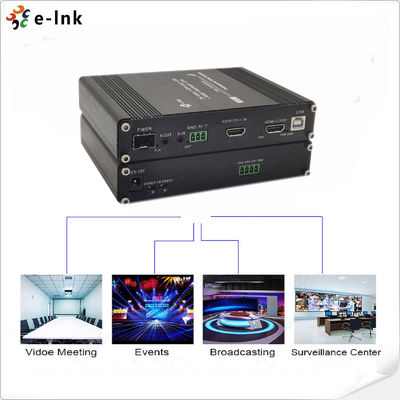

Large Image :  KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio

Product Details:
Place of Origin: Guangdong
Brand Name: E-link
Certification: CE FCC RoHS
Model Number: LNK-KVM-HDMI-1D1BA1GO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: please contact seller
Packaging Details: Standard export package
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000
Detailed Product Description
Video Standards: HDMI V1.3 Resolution: 1920*1080@60Hz
Power Supply: DC 12V/1A Dimension: 168*115*28mm
High Light:

RS232 HDMI Fiber Optic Extender

,

KVM HDMI Fiber Optic Extender

,

Bidi Stereo Audio HDMI Extender

Multi-functional 1080P HDMI Fiber Optic Extender support KVM + RS232 + Bidi Stereo Audio + GPIO

Model: LNK-KVM-HDMI-1D1BA1GO

Overview

KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio 0



The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.





Features

KVM RS232 HDMI Fiber Optic Extender Bidi Stereo Audio 1





Technical Indexes

Parameter Description
Video Standards HDMI V1.3
Maximum pixel clock 165MHz
Maximum data rate 2.97Gbps
Resolution

1920*1080@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz

Connector HDMI
Impedance 100Ω
Audio Interface 3.5mm earphone seat
Signal type Stereo
K/M Interface

To PC: MINI-USB

To keyboard and mouse: USB-A

GPIO Interface Industrial terminal
RS232 Interface Industrial terminal
Signal direction Unidirectional
Baud rate Self-adaptive, Max:115200bps
Data bits 8
Optical fiber Interface LC connector
Fiber type Single-mode single fiber
Wavelength Single-mode 1310nm
Interface bandwidth 3Gbps
Transmission distance standard 20km
Other Power supply The power adapter: DC 12V/1A
Power dissipation MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 168*115*28mm
The warranty 1-year warranty







Ordering Information

Model Description
LNK-KVM-HDMI-1D1BA1GO 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
LNK-HDMI-1D1BA 1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM
