16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

Name: 16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch
Brand: E-link China
SKU: LNK-M2016P
Rating: 4.6 (150 reviews)

Large Image : 16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link China
Certification:	CE, RoHS, FCC
Model Number:	LNK-M2016P

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	1 piece in 1 carton; Support OEM Service
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, Paypal
Supply Ability:	100000000pcs/month

Contact Now

Detailed Product Description

MAC:	16K	Buffer Memory Space:	2Mbit
Power:	DC48V	Working Temperature:	-10~60℃
Dimension:	28mm (H)×193mm(W)×119mm (D)	Cat5 Distance:	100m
Built-in Power Supply:	Support	Bit Error Rate:	<1/1000000000
Power Consumption:	6W	SFP Distance:	0-120km
Highlight:	power over ethernet gigabit switch , poe powered gigabit switch

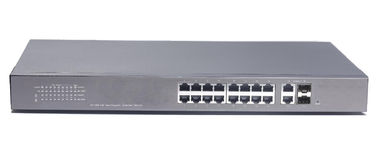

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch 0

Technical Indexes

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE	PoE ports: 16 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting
Wavelength	SFP Module: 850nm/1310nm/1490nm/1550nm
Distance	1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	16 100M RJ45 ports (PoE optional): 10/100Mbps 2 1000M SFP ports: 1000M SFP
MAC	16K
Buffer memory space	2Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC48V
Power consumption	6W for the deivce, PoE power maximum 247W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Overview

LNK-M2016P Series is 18 ports managed 100M/1000M PoE Ethernet switch, with 16 10/100M RJ45 PoE ports and 2 1000M SFP uplink ports. Managed type supports web management.

LNK-M2016P supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.

LNK-M2016P supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices, supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.

Features

Support maximum 16 10/100M RJ45 PoE ports and 2 1000M SFP uplink ports
Each PoE port supports to auto discovery the standard power receiving device
Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
Support 100M port full rate, full-duplex non-blocking forwarding
Support 16K MAC learning, 2Mbits storage and forward cache space,18G back plane bandwidth
Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
Support to choose one side with fixed metal casing, built-in power design, better for heat dissipating and installation
