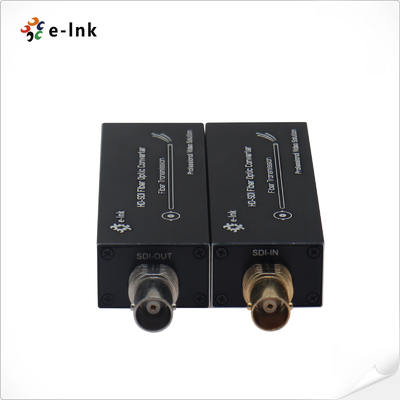

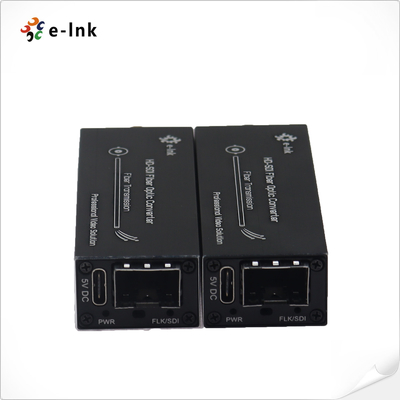

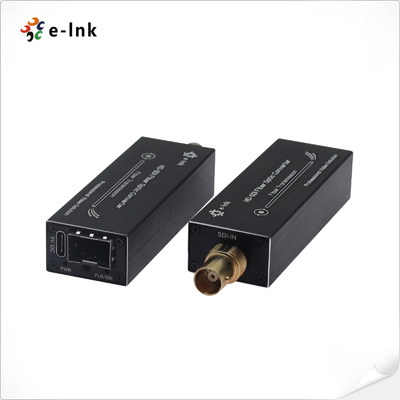

Mini HD-SDI over Fiber Extender

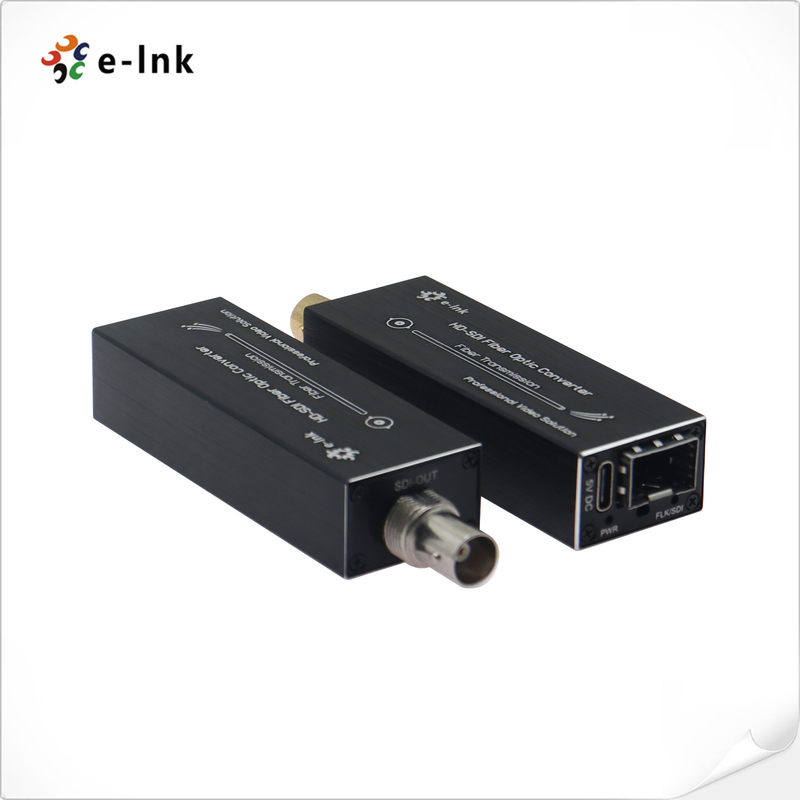

Large Image : Mini HD-SDI over Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-MHD

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Fiber Interface:	Simplex LC	Transmission Distance:	550m-20Km
Wavelength:	1310nm/1550nm	Power Consumption:	<3W
Dimensions (LxWxH):	79 X 27 X 18 Mm	Operating Temperature:	-20℃～+70℃
Highlight:	HD-SDI Fiber Extender , Mini HD-SDI Fiber Extender

Mini HD-SDI over Fiber Extender

SDI Video SFP Module Advantages

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

SDI Video SFP Module Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
Video SDI standard	1.485Gbps (HD-SDI)
Electrical
Power adaptor	5V DC, Type-C Interface
Power consumption	<3W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	79 x 27 x 18 mm
Weight	0.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop

Industrial Ethernet Media Converter Overview
LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded) signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used in surveillance and broadcasting area.

Ordering Information

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
