Gigabit Ethernet PoE Splitter with 12VDC Output, Plug-and-Play Design with IEEE802.3at

Industrial IEEE802.3af/at PoE Splitter with 2-port switch function, output voltage 12VDC

Overview

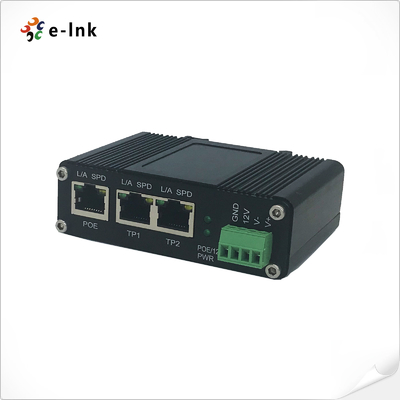

The LNK-SPL01 is an industrial-grade Gigabit Ethernet PoE splitter designed to provide data and power to
non-PoE devices. It transmits data via an RJ45 connector and outputs power (12VDC) via a terminal block,
enabling network and power transmission up to 100 meters, saving cabling costs. Compliant with
IEEE802.3af/at standards, the device can be powered by a PoE switch or the LNK-INJ301 injector.
It supports dual power input (PoE and 12VDC), automatically switching when PoE becomes unavailable,
ensuring high reliability. Equipped with two RJ45 data output ports, the LNK-SPL01 can function
as a small switch. Easy to install, requiring no additional configuration, it is ideal for industrial applications.

Features

► Splits power and data from PoE Input

► 1-port PoE Power+ Data input

► 2-port Data output (Switch function)

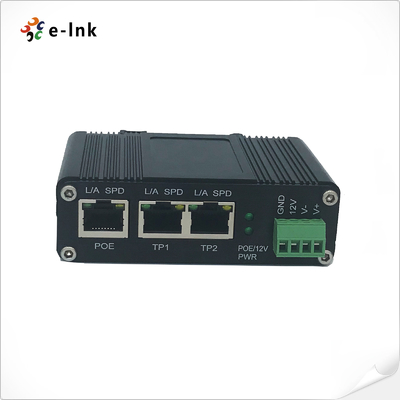

► 1 DC Out + 1 DC In (5-pin Terminal Block)

► Able to work with 12VDC input no PoE

► Support IEEE802.3af/at PoE

► Support 10/100/1000Base-TX

► Distance up to 100 meters

► Supports output power up to 20W

► 12VDC output voltage

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

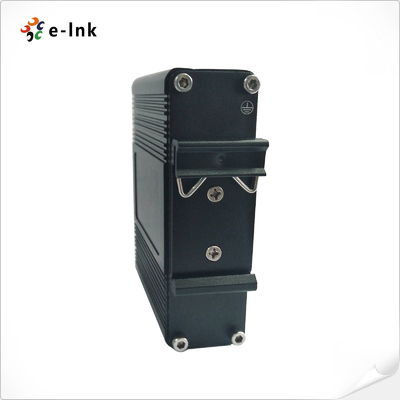

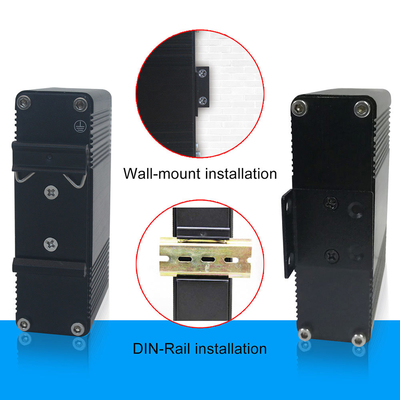

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C
