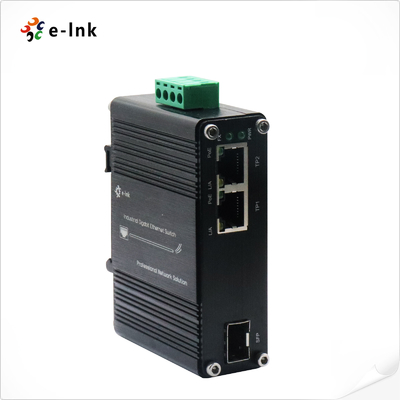

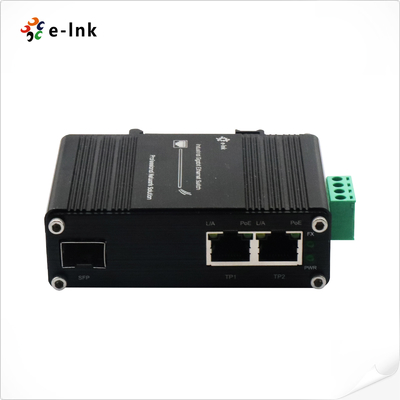

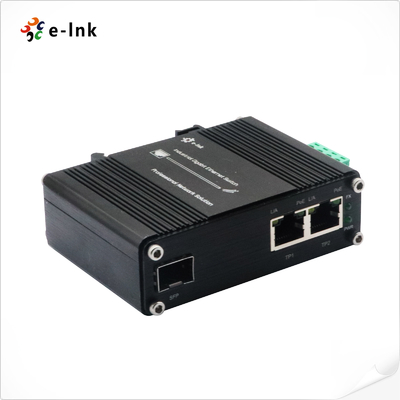

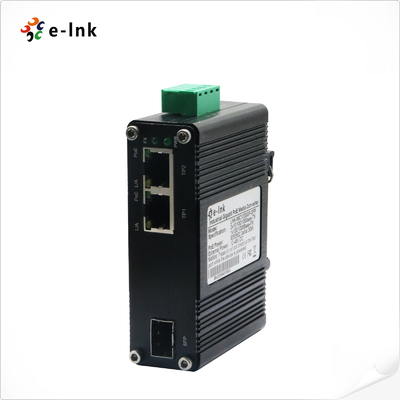

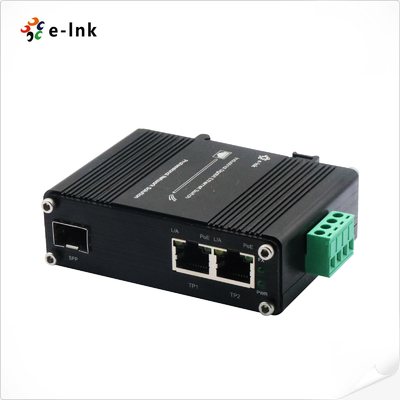

60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC

60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC
60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC 60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC 60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC 60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC 60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC 60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC

Large Image :  60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE/FCC/Rohs
Model Number: LNK-IMC1200GP60-SFP
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1 piece in 1 carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Input Power:: 48-57VDC, 2-pin Terminal Block Power Consumption:: 125W Max
Dimensions (WxDxH):: 95 X 70 X 30 Mm Mounting Options: DIN-Rail / Wall-mount
Weight:: 0.25Kg
High Light:

60W SFP PoE Media Converter

,

PD Plug PoE Media Converter

,

57VDC DIN Rail Media Converter

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 60W PoE++ Media Converter
60W SFP PoE Media Converter 1 Port 100/1000X PD Plug 48-57VDC 0
Overview
LNK-IMC1200GP60-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C.
LNK-IMC1200GP60-SFP supports 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Features

  • 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
  • IEEE802.3af/at compliant
  • Up to 60W of power over 4-pairs
  • Supports Link Fault Pass Through
  • Supports Full/Half-duplex, Auto-negotiation
  • 9K Bytes Jumbo Frame
  • 48~57VDC Terminal Block Power Input
  • Supports DIN-Rail & Wall-mount installation
  • Environmentally hardened -40°C to 75°C
    (-40°F to 167°F) operating temperature.

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Power Consumption:

125W Max.

LED Indicators:

PWR:

Power Status

PoE:

PD Plug Status

RJ45:

LINK/Activity

SFP:

LINK

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Order Information

ModelDescription
LNK-IMC1200GP60-SFPHardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++
SFP Options► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
