Product Details:
Payment & Shipping Terms:
|
| Standard: | EIA /TIA RS232/485/422 | Fiber Connector: | SC Standard, ST/FC/LC Optional |
|---|---|---|---|
| Serial Connector: | Industrial Terminal | Serial Distance: | RS232: 15 Meters, RS485/422: 1000 Meters |
| Rate: | Max 2Mbps | Baud Rate: | 0 ~ 115,200k Baud |
| Power Supply: | 12~48VDC | Weight: | 0.25kg/pcs |
| High Light: | RS422 Fiber Optic Converter,FC LC Fiber Optic Converter,SMF 20KM Fiber Optic Modem |
||
Technical Indexes
| Model | LNK-IRS93 Series |
| Fiber Connector | SC standard, ST/FC/LC optional |
| Fiber Distance |
50/125um MMF: 2Km, 9/125um SMF:20/40/60/80Km |
| Serial Interface | Industrial Terminal |
| Signal Ports |
1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422 |
| Standard | EIA /TIA RS232/485/422 |
| Serial Distance | RS232: 15 meters, RS485/422: 1000 meters |
| Rate | Max 2Mbps |
| Baud Rate | 0 ~ 115,200k Baud |
| RS-232 | TXD, RXD, GND - Bi-directional |
| RS-485 | D+, D-, GND - Bi-directional |
| Power Supply | 12~48VDC (110VDC customized) |
| Power rate | <5W |
| Static protection | 15KV electric static discharge (ESD) protection |
| Surge protection | 1500W/sec surge protection |
| Operation Temperature | -25°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions (LxWxH) | 95*70*29 mm |
| Weight | 0.25kg/pcs |
Order Information
| Model | Description |
| LNK-IRS93-SFP | Industrial Serial RS232/RS485/RS422 with SFP port |
| LNK-IRS93-SCMM | Industrial Serial RS232/RS485/RS422, SC MM 1310nm, 2km |
| LNK-IRS93-SC20 | Industrial Serial RS232/RS485/RS422, SC SM 1310nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply needs to be purchased separately |
Overview

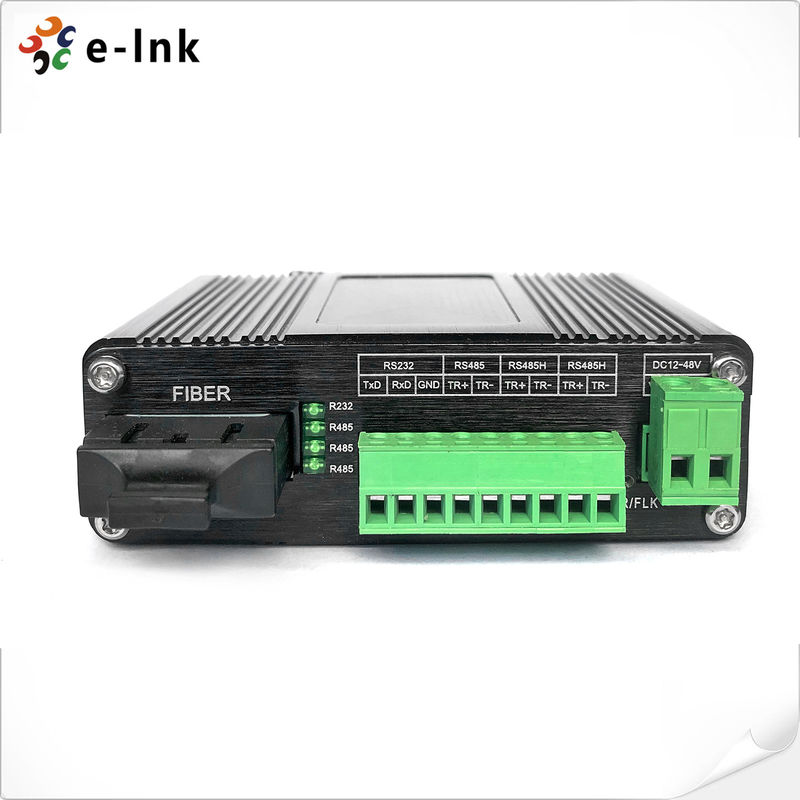

LNK-IRS93 series is an industrial grade RS232/RS485/RS422 to fiber optic converter which converts a standard RS232/RS485/RS422 signal to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber. The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security, and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions.
Features
